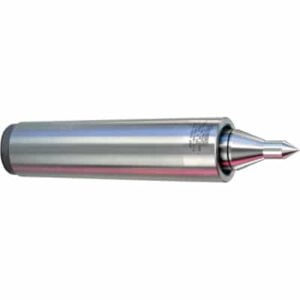

Royal Spring Type Live Center — Standard Point — 5 Morse Taper
$1,990.00
In Stock for Same Day Shipping
-
- Unique spring-loaded point compensates for workpiece thermal expansion.
- Low-profile design provides outstanding tool clearance.
- Can be used in the turret of sub-spindle machines to overcome a lack of hydraulic compensation.
- Body and point are hardened and ground for strength and long life.
- All Royal Live Centers are proudly Made in U.S.A.
| Live Center Type | Spring Type - Standard Point, Spring Type |
|---|---|
| Shank Type | Morse Taper |
| Center Type | Spring Type |
| Center Dimension A (Center Taper) | 5 MT |
| Center Dimension B | 1.748 |
| Center Dimension F | 2.00 |
| Weight of Workpiece (lbs.) | 2340 |
| Center Dimension G | 1.10 |
| Spring Travel | 0.19 |
| Max Suggested RPM | 4,500 |
| Thrust Load (lbs.) | 785 |
